Construction

Electrical Data

Capacitance range: 100 pF to 0.01 µF (E12-values on request)
Rated voltages: 63VDC, 100VDC, 250VDC, 400VDC
Capacitance tolerances: ±20%, ±10%, ±5%, ±2.5%
Operating temperature range: -55°C to +100°C
Test specifications: In accordance with IEC 60384-13
Climatic test category: 55/100/21 in accordance with IEC
Insulation resistance at +20°C: > 3 x 10⁵ MΩ
Measuring voltage:
U_r = 63V: U_test = 50 V/1 min.
U_r > 100V: U_test = 100 V/1 min.
Test voltage: 2 U_r, 2 sec
Maximum pulse rise time: 1000 V/µsec.
Dielectric absorption: 0.05%
Temperature coefficient: -200 x 10^-6/°C (typical)
Dissipation factors at +20°C: tanδ

at f	C < 0.01 µF
1kHz 10kHz 100kHz	< 5 x 10-4 < 6 x 10-4 < 8 x 10-4

Voltage derating: A voltage derating factor of 1.35% per K must be applied from +85°C for DC voltages and from +75°C for AC voltages.
Reliability: Operational life > 300000 hours. Failure rate < 5 fit (0.5 x U_r and 40°C)

Mechanical Tests

Pull test on pins: 10 N in direction of pins according to IEC 60068-2-21
Vibration: 6 hours at 10...2000Hz and 0.75mm displacement amplitude or 10g in accordance with IEC 60068-2-6
Low air density: 1kPa = 10 mbar in accordance with IEC 60068-2-13
Bump test: 4000 bumps at 390 m/sec² in accordance with IEC 60068-2-29

Packing

Available taped and reeled.

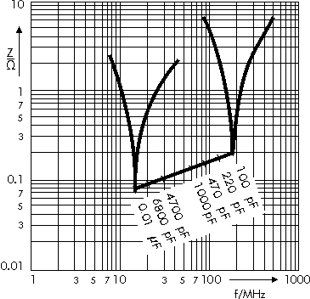

General Data
