DC-Link capacitors

WIMA DC-LINK MKP 6Metallized Polypropylene (PP) Capacitors in Cylindrical Case.

Capacitances from 75 µF to 4920 µF.
Rated Voltages from 600 VDC to 1500 VDC.

Special Features

Very high volume/capacitance ratio
Self-healing properties
With cylindrical aluminium case for bus bar mounting
Dry construction without electrolyte or oil
No internal fuse required
Negative capacitance change versus temperature
Very low dielectric absorption
According to RoHS 2011/65/EU
Customer-specific capacitances or voltages on request

Typical Applications

DC capacitors with high capacitances for applications in power electronics also at non-sinusoidal voltages and currents e.g. in

Wind power systems
Inverters

Construction

Dielectric: Polypropylene (PP) film
Capacitor electrodes: Vacuum-deposited
Encapsulation: Aluminium case with PU sealing, UL 94 V-0
Terminations: Screw connection (male or female), screw bolt M12 x 16
Marking: Colour: Metallic. Marking: Black on silver label.

Internal construction:

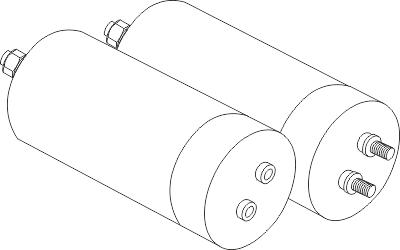

Construction WIMA DC-LINK MKP 6 capacitors

Electrical Data

Capacitance range: 75 µF to 4920 µF
Rated voltages: 600VDC, 700VDC, 900VDC, 1100VDC, 1300VDC, 1500VDC
Capacitance tolerances: ±20%, ±10% (±5% available subject to special enquiry)
Operating temperature range: -40°C to +85°C
Insulation resistance at +20°C: > 5000 sec (MΩ x µF)
Measuring voltage: 100V/1 min.
Dielectric loss factor tanδ₀: 2 x 10^-4
Test voltage between terminals at 25°C: 1.5 U_rDC, 10 sec
Test voltage between terminals and case at 25°C and 50Hz: 3kV_AC, 1 min
Dielectric absorption: 0.05%
Reliability: Operational life > 100000 hours. Failure rate < 50 fit (hot spot < 70°C)

Mounting Recommendation

Excessive mechanical strain, e.g. pressure or shock onto the capacitor body, is to be avoided during mounting and usage of the capacitors.

Packing

Transportation-safe packing in cardboard boxes.

The capacitors are non-polarized and are optionally available with "male" and "female" terminations. The earth bolt is electrically inactive and serves for fixing and/or earthing of the metal case.

General Data

U_R		C_N	D x L mm	I_rms (max.)* at 70°C A	ESR (1 KHz)* mΩ	L_e nH	Approx. weight g	Part number
70°C	85°C	C_N	D x L mm	I_rms (max.)* at 70°C A	ESR (1 KHz)* mΩ	L_e nH	Approx. weight g	Part number
600 VDC	450 VDC	320 µF 460 " 520 " 620 " 760 " 780 " 950 " 1030 " 1220 " 1500 " 1640 " 1890 " 2030 "	85 x 60 85 x 76 85 x 85 85 x 95 85 x 110 85 x 120 85 x 132 85 x 140 116 x 95 116 x 110 116 x 120 116 x 132 116 x 140	25 25 30 30 30 30 35 35 40 40 40 40 40	2.1 2.1 2.0 1.9 1.7 1.7 1.8 1.8 1.7 1.7 1.6 1.6 1.6	< 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40	380 480 540 600 690 700 850 880 1200 1390 1510 1660 1760	DCP6I06320EB00_ _ _ _ DCP6I06460EC00_ _ _ _ DCP6I06520ED00_ _ _ _ DCP6I06620EE00_ _ _ _ DCP6I06760EF00_ _ _ _ DCP6I06780E000_ _ _ _ DCP6I06950E100_ _ _ _ DCP6I07103EG00_ _ _ _ DCP6I07122EN00_ _ _ _ DCP6I07150EO00_ _ _ _ DCP6I07164EP00_ _ _ _ DCP6I07189EQ00_ _ _ _ DCP6I07203ER00_ _ _ _
700 VDC	600 VDC	230 µF 330 " 380 " 450 " 550 " 585 " 690 " 740 " 890 " 1090 " 1190 " 1370 " 1470 "	85 x 60 85 x 76 85 x 85 85 x 95 85 x 110 85 x 120 85 x 132 85 x 140 116 x 95 116 x 110 116 x 120 116 x 132 116 x 140	25 25 30 30 30 30 35 35 40 40 40 40 40	1.9 1.9 1.7 1.7 1.8 1.8 1.8 1.8 1.7 1.7 1.8 1.8 1.8	< 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40	380 480 540 600 690 700 850 880 1200 1390 1510 1660 1760	DCP6K06230EB00_ _ _ _ DCP6K06330EC00_ _ _ _ DCP6K06380ED00_ _ _ _ DCP6K06450EE00_ _ _ _ DCP6K06550EF00_ _ _ _ DCP6K06585E000_ _ _ _ DCP6K06690E100_ _ _ _ DCP6K06704EG00_ _ _ _ DCP6K06890EN00_ _ _ _ DCP6K07109EO00_ _ _ _ DCP6K07119EP00_ _ _ _ DCP6K07137EQ00_ _ _ _ DCP6K07147ER00_ _ _ _
900 VDC	760 VDC	190 µF 270 " 315 " 360 " 450 " 480 " 550 " 620 " 730 " 900 " 980 " 1130 " 1200 "	85 x 60 85 x 76 85 x 85 85 x 95 85 x 110 85 x 120 85 x 132 85 x 140 116 x 95 116 x 110 116 x 120 116 x 132 116 x 140	30 30 30 30 30 35 35 35 40 40 40 40 40	1.9 1.9 1.8 1.7 1.7 1.8 1.8 1.8 1.7 1.7 1.8 1.8 1.8	< 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40	380 480 540 600 690 700 850 880 1200 1390 1510 1660 1760	DCP6N06190EB00_ _ _ _ DCP6N06270EC00_ _ _ _ DCP6N06315ED00_ _ _ _ DCP6N06360EE00_ _ _ _ DCP6N06450EF00_ _ _ _ DCP6N06480E000_ _ _ _ DCP6N06550E100_ _ _ _ DCP6N06620EG00_ _ _ _ DCP6N06730EN00_ _ _ _ DCP6N06900EO00_ _ _ _ DCP6N06980EP00_ _ _ _ DCP6N07113EQ00_ _ _ _ DCP6N07120ER00_ _ _ _
1100 VDC	920 VDC	120 µF 170 " 200 " 230 " 290 " 325 " 360 " 390 " 470 " 580 " 630 " 720 " 780 "	85 x 60 85 x 76 85 x 85 85 x 95 85 x 110 85 x 120 85 x 132 85 x 140 116 x 95 116 x 110 116 x 120 116 x 132 116 x 140	30 30 30 30 30 40 40 40 40 40 40 40 40	2.0 2.0 1.9 1.9 1.8 1.8 1.8 2.0 1.8 1.8 1.7 1.7 1.6	< 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40	380 480 540 600 690 700 850 880 1200 1390 1510 1660 1760	DCP6P06120EB00_ _ _ _ DCP6P06170EC00_ _ _ _ DCP6P06200ED00_ _ _ _ DCP6P06230EE00_ _ _ _ DCP6P06290EF00_ _ _ _ DCP6P06325E000_ _ _ _ DCP6P06360E100_ _ _ _ DCP6P06390EG00_ _ _ _ DCP6P06470EN00_ _ _ _ DCP6P06580EO00_ _ _ _ DCP6P06630EP00_ _ _ _ DCP6P06720EQ00_ _ _ _ DCP6P06780ER00_ _ _ _
1300 VDC	1100 VDC	85 µF 120 " 135 " 160 " 200 " 215 " 250 " 270 " 320 " 390 " 430 " 490 " 530 "	85 x 60 85 x 76 85 x 85 85 x 95 85 x 110 85 x 120 85 x 132 85 x 140 116 x 95 116 x 110 116 x 120 116 x 132 116 x 140	30 30 30 30 30 30 40 40 40 40 40 40 40	2.1 2.1 1.9 1.9 1.8 1.8 2.2 2.2 1.8 1.8 1.7 1.7 1.6	< 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40	380 480 540 600 690 700 850 880 1200 1390 1510 1660 1760	DCP6R25850EB00_ _ _ _ DCP6R26120EC00_ _ _ _ DCP6R26135ED00_ _ _ _ DCP6R26160EE00_ _ _ _ DCP6R26200EF00_ _ _ _ DCP6R26215E000_ _ _ _ DCP6R26250E100_ _ _ _ DCP6R26270EG00_ _ _ _ DCP6R26320EN00_ _ _ _ DCP6R26390EO00_ _ _ _ DCP6R26430EP00_ _ _ _ DCP6R26490EQ00_ _ _ _ DCP6R26530ER00_ _ _ _
1500 VDC	1250 VDC	75 µF 110 " 120 " 145 " 180 " 195 " 225 " 240 " 290 " 355 " 390 " 445 " 480 "	85 x 60 85 x 76 85 x 85 85 x 95 85 x 110 85 x 120 85 x 132 85 x 140 116 x 95 116 x 110 116 x 120 116 x 132 116 x 140	25 25 25 30 30 40 40 40 40 40 40 40 40	2.5 2.5 2.3 2.3 2.3 2.4 2.4 2.5 1.8 1.8 1.7 1.7 1.7	< 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40 < 40	380 480 540 600 690 700 850 880 1200 1390 1510 1660 1760	DCP6S05750EB00_ _ _ _ DCP6S06110EC00_ _ _ _ DCP6S06120ED00_ _ _ _ DCP6S06145EE00_ _ _ _ DCP6S06180EF00_ _ _ _ DCP6S06195E000_ _ _ _ DCP6S06225E100_ _ _ _ DCP6S06240EG00_ _ _ _ DCP6S06290EN00_ _ _ _ DCP6S06355EO00_ _ _ _ DCP6S06390EP00_ _ _ _ DCP6S06445EQ00_ _ _ _ DCP6S06480ER00_ _ _ _

Contacts can handle:
peak currents Î up to 5 kA
surge currents I_s up to 20 kA

Versions with increased dimensioning for higher current carrying capability

U_R		C_N	D x L mm	I_rms (max.)* at 70°C A	ESR (1 KHz)* mΩ	L_e nH	Approx. weight g	Part number
70°C	85°C	C_N	D x L mm	I_rms (max.)* at 70°C A	ESR (1 KHz)* mΩ	L_e nH	Approx. weight g	Part number
600 VDC	450 VDC	640 µF 920 " 1040 " 1240 " 1520 " 1660 " 1900 " 2060 " 2490 " 1260 " 1820 " 2060 " 2440 " 3000 " 3280 " 3780 " 4060 " 4920 "	85 x 110 85 x 140 85 x 155 85 x 185 85 x 210 85 x 235 85 x 252 85 x 260 85 x 345 116 x 110 116 x 140 116 x 158 116 x 185 116 x 215 116 x 230 116 x 255 116 x 295 116 x 342	50 50 60 60 60 60 60 60 70 80 80 80 80 80 90 90 90 100	1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.0 1.2 1.2 1.1 1.1 1.0 1.0 1.0 1.0 0.7	< 40 < 40 < 40 < 60 < 60 < 60 < 60 < 60 < 70 < 40 < 40 < 40 < 60 < 60 < 60 < 60 < 70 < 70	690 880 980 1165 1400 1480 1590 1640 2190 1385 1765 1990 2330 2710 2900 3210 3720 4350	DCHPI06640EF00_ _ _ _ DCHPI06920EG00_ _ _ _ DCHPI07104EH00_ _ _ _ DCHPI07124EI00_ _ _ _ DCHPI07152E200_ _ _ _ DCHPI07166EJ00_ _ _ _ DCHPI07190EK00_ _ _ _ DCHPI07206EL00_ _ _ _ DCHPI07249EM00_ _ _ _ DCHPI07126EO00_ _ _ _ DCHPI07182ER00_ _ _ _ DCHPI07206ES00_ _ _ _ DCHPI07244ET00_ _ _ _ DCHPI07300EU00_ _ _ _ DCHPI07328E700_ _ _ _ DCHPI07378EV00_ _ _ _ DCHPI07406EW00_ _ _ _ DCHPI07492EX00_ _ _ _
700 VDC	600 VDC	460 µF 660 " 760 " 900 " 1100 " 1200 " 1380 " 1480 " 1800 " 920 " 1320 " 1500 " 1780 " 2180 " 2380 " 2740 " 2940 " 3570 "	85 x 110 85 x 140 85 x 155 85 x 185 85 x 210 85 x 235 85 x 252 85 x 260 85 x 345 116 x 110 116 x 140 116 x 158 116 x 185 116 x 215 116 x 230 116 x 255 116 x 295 116 x 342	50 50 60 60 60 60 70 70 80 80 80 80 80 90 90 90 90 110	1.3 1.3 1.2 1.2 1.2 1.2 1.1 1.1 1.0 1.3 1.3 1.3 1.2 1.2 1.0 1.0 1.0 0.7	< 40 < 40 < 40 < 60 < 60 < 60 < 60 < 60 < 70 < 40 < 40 < 40 < 60 < 60 < 60 < 60 < 70 < 70	690 880 980 1165 1400 1480 1590 1640 2190 1385 1765 1990 2330 2710 2900 3210 3720 4350	DCHPK06460EF00_ _ _ _ DCHPK06660EG00_ _ _ _ DCHPK06760EH00_ _ _ _ DCHPK06900EI00_ _ _ _ DCHPK07110E200_ _ _ _ DCHPK07120EJ00_ _ _ _ DCHPK07138EK00_ _ _ _ DCHPK07148EL00_ _ _ _ DCHPK07180EM00_ _ _ _ DCHPK06920EO00_ _ _ _ DCHPK07132ER00_ _ _ _ DCHPK07150ES00_ _ _ _ DCHPK07178ET00_ _ _ _ DCHPK07218EU00_ _ _ _ DCHPK07238E700_ _ _ _ DCHPK07274EV00_ _ _ _ DCHPK07294EW00_ _ _ _ DCHPK07357EX00_ _ _ _
900 VDC	760 VDC	380 µF 540 " 630 " 720 " 900 " 1000 " 1140 " 1240 " 1500 " 760 " 1100 " 1240 " 1460 " 1800 " 1960 " 2260 " 2400 " 2940 "	85 x 110 85 x 140 85 x 155 85 x 185 85 x 210 85 x 235 85 x 252 85 x 260 85 x 345 116 x 110 116 x 140 116 x 158 116 x 185 116 x 215 116 x 230 116 x 255 116 x 295 116 x 342	50 50 60 60 60 70 70 70 80 80 80 80 80 90 90 90 90 110	1.4 1.4 1.3 1.3 1.1 1.0 0.9 0.9 0.7 1.3 1.3 1.3 1.3 1.2 1.0 1.0 1.0 0.7	< 40 < 40 < 40 < 60 < 60 < 60 < 60 < 60 < 70 < 40 < 40 < 40 < 60 < 60 < 60 < 60 < 70 < 70	690 880 980 1165 1400 1480 1590 1640 2190 1385 1765 1990 2330 2710 2900 3210 3720 4350	DCHPN06380EF00_ _ _ _ DCHPN06540EG00_ _ _ _ DCHPN06630EH00_ _ _ _ DCHPN06720EI00_ _ _ _ DCHPN06900E200_ _ _ _ DCHPN07100EJ00_ _ _ _ DCHPN07114EK00_ _ _ _ DCHPN07124EL00_ _ _ _ DCHPN07150EM00_ _ _ _ DCHPN06760EO00_ _ _ _ DCHPN07110ER00_ _ _ _ DCHPN07124ES00_ _ _ _ DCHPN07146ET00_ _ _ _ DCHPN07180EU00_ _ _ _ DCHPN07196E700_ _ _ _ DCHPN07226EV00_ _ _ _ DCHPN07240EW00_ _ _ _ DCHPN07294EX00_ _ _ _
1100 VDC	920 VDC	240 µF 340 " 400 " 460 " 580 " 640 " 720 " 780 " 960 " 480 " 700 " 780 " 940 " 1160 " 1260 " 1440 " 1560 " 1890 "	85 x 110 85 x 140 85 x 155 85 x 185 85 x 210 85 x 235 85 x 252 85 x 260 85 x 345 116 x 110 116 x 140 116 x 158 116 x 185 116 x 215 116 x 230 116 x 255 116 x 295 116 x 342	50 50 50 50 60 60 60 60 80 80 80 80 80 90 90 90 90 110	1.3 1.2 1.2 1.2 1.2 1.1 1.1 1.2 1.0 1.4 1.3 1.3 1.3 1.2 1.2 1.1 1.0 0.8	< 40 < 40 < 40 < 60 < 60 < 60 < 60 < 60 < 70 < 40 < 40 < 40 < 60 < 60 < 60 < 60 < 70 < 70	690 880 980 1165 1400 1480 1590 1640 2190 1385 1765 1990 2330 2710 2900 3210 3720 4350	DCHPP06240EF00_ _ _ _ DCHPP06340EG00_ _ _ _ DCHPP06400EH00_ _ _ _ DCHPP06460EI00_ _ _ _ DCHPP06580E200_ _ _ _ DCHPP06640EJ00_ _ _ _ DCHPP06720EK00_ _ _ _ DCHPP06780EL00_ _ _ _ DCHPP06960EM00_ _ _ _ DCHPP06480EO00_ _ _ _ DCHPP06700ER00_ _ _ _ DCHPP06780ES00_ _ _ _ DCHPP06940ET00_ _ _ _ DCHPP07116EU00_ _ _ _ DCHPP07126E700_ _ _ _ DCHPP07144EV00_ _ _ _ DCHPP07156EW00_ _ _ _ DCHPP07189EX00_ _ _ _
1300 VDC	1100 VDC	170 µF 240 " 270 " 320 " 400 " 440 " 500 " 540 " 660 " 330 " 480 " 540 " 640 " 780 " 860 " 980 " 1060 " 1290"	85 x 110 85 x 140 85 x 155 85 x 185 85 x 210 85 x 235 85 x 252 85 x 260 85 x 345 116 x 110 116 x 140 116 x 158 116 x 185 116 x 215 116 x 230 116 x 255 116 x 295 116 x 342	50 50 50 60 60 60 60 60 80 80 80 80 80 90 90 90 90 110	1.3 1.3 1.2 1.2 1.2 1.1 1.1 1.2 1.0 1.4 1.4 1.3 1.3 1.2 1.2 1.1 1.1 0.8	< 40 < 40 < 40 < 60 < 60 < 60 < 60 < 60 < 70 < 40 < 40 < 40 < 60 < 60 < 60 < 60 < 70 < 70	690 880 980 1165 1400 1480 1590 1640 2190 1385 1765 1990 2330 2710 2900 3210 3720 4350	DCHPR26170EF00_ _ _ _ DCHPR26240EG00_ _ _ _ DCHPR26270EH00_ _ _ _ DCHPR26320EI00_ _ _ _ DCHPR26400E200_ _ _ _ DCHPR26440EJ00_ _ _ _ DCHPR26500EK00_ _ _ _ DCHPR26540EL00_ _ _ _ DCHPR26660EM00_ _ _ _ DCHPR26330EO00_ _ _ _ DCHPR26480ER00_ _ _ _ DCHPR26540ES00_ _ _ _ DCHPR26640ET00_ _ _ _ DCHPR26780EU00_ _ _ _ DCHPR26860E700_ _ _ _ DCHPR26980EV00_ _ _ _ DCHPR27106EW00_ _ _ _ DCHPR27129EX00_ _ _ _
1500 VDC	1250 VDC	150 µF 220 " 240 " 290 " 360 " 390 " 450 " 480 " 585 " 300 " 430 " 490 " 580 " 710 " 780 " 890 " 960 " 1170 "	85 x 110 85 x 140 85 x 155 85 x 185 85 x 210 85 x 235 85 x 252 85 x 260 85 x 345 116 x 110 116 x 140 116 x 158 116 x 185 116 x 215 116 x 230 116 x 255 116 x 295 116 x 342	50 50 50 60 60 60 60 60 80 80 80 80 80 90 90 90 90 110	1.3 1.3 1.2 1.2 1.2 1.1 1.1 1.1 1.0 1.5 1.4 1.4 1.4 1.3 1.2 1.2 1.1 0.8	< 40 < 40 < 40 < 60 < 60 < 60 < 60 < 60 < 70 < 40 < 40 < 40 < 60 < 60 < 60 < 60 < 70 < 70	690 880 980 1165 1400 1480 1590 1640 2190 1385 1765 1990 2330 2710 2900 3210 3720 4350	DCHPS06150EF00_ _ _ _ DCHPS06220EG00_ _ _ _ DCHPS06240EH00_ _ _ _ DCHPS06290EI00_ _ _ _ DCHPS06360E200_ _ _ _ DCHPS06390EJ00_ _ _ _ DCHPS06450EK00_ _ _ _ DCHPS06480EL00_ _ _ _ DCHPS06585EM00_ _ _ _ DCHPS06300EO00_ _ _ _ DCHPS06430ER00_ _ _ _ DCHPS06490ES00_ _ _ _ DCHPS06580ET00_ _ _ _ DCHPS06710EU00_ _ _ _ DCHPS06780E700_ _ _ _ DCHPS06890EV00_ _ _ _ DCHPS06960EW00_ _ _ _ DCHPS07117EX00_ _ _ _

Contacts can handle:
peak currents Î up to 5 kA
surge currents I_s up to 40 kA
Customer-specific capacitances or voltages on request
* General guide
Dims. in mm

female

male

D	L	a	b	c
85 85 85 85 85 85 85 85 85 85 85 85 85 85 85	60 76 85 95 110 120 132 140 155 185 210 235 252 260 345	32 32 32 32 32 32 32 32 32 32 32 32 32 32 32	12 12 12 12 12 12 12 12 12 12 12 12 12 12 12	6 6 6 6 6 6 6 6 6 6 6 6 6 6 6

D	L	a	b	c
116 116 116 116 116 116 116 116 116 116 116	110 120 132 140 158 185 215 230 255 295 342	50 50 50 50 50 50 50 50 50 50 50	14 14 14 14 14 14 14 14 14 14 14	5 5 5 5 5 5 5 5 5 5 5

Part number completion:

Tolerance:	20 % = M 10 % = K 5 % = J
Packing:	bulk = S
Connection:	male = 0M female = 0F

Rights reserved to amend design data without prior notification.
