Metallized capacitors

WIMA MKS 4 Metallized Polyester (PET) Capacitors.

Capacitances from 1000 pF to 680 µF.
Rated Voltages from 50 VDC to 2000 VDC.
PCM 7.5 mm to 52.5 mm.

PDF-File

Special Features

High volume/capacitance ratio
Self-healing
AEC-Q200 qualified for PCM < 37.5 mm (for larger box sizes on request)
According to RoHS 2011/65/EU

Typical Applications

For general DC-applications e.g.

By-pass
Blocking
Coupling and decoupling
Smoothing
Timing

Construction

Dielectric: Polyethylene-terephthalate (PET) film
Capacitor electrodes: Vacuum-deposited
Encapsulation: Solvent-resistant, flame retardant plastic case with epoxy resin seal, UL 94 V-0
Terminations: Tinned wire
Marking: Colour: Red. Marking: Black.

Internal construction:
MKS 4: 30VAC, 40VAC, 63VAC, 160VAC, 200VAC
Construction WIMA MKS 4 capacitors up to 200 VAC
MKS 4: 400VAC

Electrical Data

Capacitance range: 1000 pF to 680 µF
Rated voltages: 50VDC, 63VDC, 100VDC, 250VDC, 400VDC, 630VDC, 1000VDC, 1500VDC, 2000VDC
Capacitance tolerances: ±20%, ±10%, ±5%
Operating temperature range:
U_r = 50 VDC: -55°C to +105°C
U_r > 63 VDC: -55°C to +125°C
Climatic test category: 55/100/56 in accordance with IEC
Test specifications: In accordance with IEC 60384-2
Test voltage: 1.6 U_r, 2 sec
Insulation resistance at +20°C: Measuring time: 1 min.

U_r	U_test	C < 0.33 µF	0.33 µF< C < 680 µF
50 VDC	10 V	>5 x 10³ MΩ	> 1500 sec (MΩ x µF)
63 VDC	50 V	>1 x 10⁴ MΩ	> 3000 sec ( MΩ x µF)
100 VDC	100 V	>1.5 x 10⁴ MΩ	> 5000 sec (MΩ x µF)
>250 VDC	100 V	>3 x 10⁴ MΩ	> 10000 sec (MΩ x µF)

Dissipation factors at +20°C: tanδ

at f	C < 0.1 µF	0.1 µF< C < 1.0 µF	C > 1.0 µF
1 kHz 10 kHz 100 kHz	< 8 x 10^-3 < 15 x 10^-3 < 30 x 10^-3	< 8 x 10^-3 < 15 x 10^-3 -	< 10 x 10^-3 - -

Maximum pulse rise time: for pulses equal to the rated voltage.

Capacitance pF/µF	Pulse rise time V/sec max. operation
Capacitance pF/µF	50VDC	63VDC	100VDC	250VDC	400VDC	630VDC	1000VDC	1500VDC	2000VDC
1000 ...6800 0.01 ...0.022 0.033...0.068 0.1...0.22 0.33...0.68 1.0...2.2 3.3...6.8 10...22 33...68 100...220 330... 680	- - - 10 9 6 2.5 2.5 2.5 2.5 0.2	- - - 10 9 6 3 2.5 2.5 2.5 0.2	- 30 15 12 9 5 3 2.5 2.5 2.5 0.3	- 35 20 15 10 6 6 3 3 0.9 -	- 38 25 15 10 9 6 6 3 - -	- 40 32 17 13 13 9 6 - - -	70 50 26 20 20 14 12 6 - - -	90 50 35 35 20 15 12 - - - -	100 60 40 40 38 15 12 - - - -

Voltage derating: A voltage derating factor of 1.25% per K must be applied from +85°C for DC voltages and from +75°C for AC voltages.
Reliability: Operational life > 300000 hours (+125°C permitted for 1000 hours max. distributed over the entire operating life). Failure rate < 2 fit (0.5 x U_r and 40°C)

Mechanical Tests

Pull test on pins:
d < 0.8 : 10 N in direction of pins
d > 0.8 : 20 N in direction of pins
according to IEC 60068-2-21
Vibration: 6 hours at 10...2000 Hz and 0.75mm displacement amplitude or 10g in accordance with IEC 60068-2-6
Low air density: 1kPa = 10 mbar in accordance with IEC 60068-2-13
Bump test: 4000 bumps at 390 m/sec² in accordance with IEC 60068-2-29

Packing

Available taped and reeled up to and including case size 15x26x31.5 / PCM 27.5mm.

General Data

Capacitance

50VDC/30VAC*

W

H

L

PCM**

Part number

0.1 µF
0.15 "
0.22 "
0.33 "
0.47 "
0.68 "

2.5
2.5
2.5
2.5
3
4

7
7
7
7
8.5
9

10
10
10
10
10
10

7.5
7.5
7.5
7.5
7.5
7.5

MKS4B031002A_ _ _ _ _ _
MKS4B031502A_ _ _ _ _ _
MKS4B032202A_ _ _ _ _ _
MKS4B033302A_ _ _ _ _ _
MKS4B034702B_ _ _ _ _ _
MKS4B036802C_ _ _ _ _ _

1.0 µF

1.5 "

2.2 "

3.3 "

4.7 "

6.8 "

4
5
5.7
5.7
7.2
6
7.2
6

9
10.5
12.5
12.5
12.5
12
12.5
12

10
10.3
10.3
10.3
10.3
13
10.3
13

7.5
7.5
7.5
7.5
7.5
10
7.5
10

MKS4B041002C_ _ _ _ _ _

MKS4B041502E_ _ _ _ _ _

MKS4B042202F_ _ _ _ _ _

MKS4B043302F_ _ _ _ _ _

MKS4B044702G_ _ _ _ _ _

MKS4B044703G_ _ _ _ _ _

MKS4B046802G_ _ _ _ _ _

MKS4B046803G_ _ _ _ _ _

10 µF

15 "

18 "

22 "

27 "

33 "

39 "

47 "

56 "

68 "

82 "

9
11
9
11
11
13
15
15
17
20
17

16
21
19
21
21
24
26
26
29
39.5
34.5

18
26.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5

15
22.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5

MKS4B051004J_ _ _ _ _ _

MKS4B051505I_ _ _ _ _ _

MKS4B051806A_ _ _ _ _ _

MKS4B052206B_ _ _ _ _ _

MKS4B052706B_ _ _ _ _ _

MKS4B053306D_ _ _ _ _ _

MKS4B053906F_ _ _ _ _ _

MKS4B054706F_ _ _ _ _ _

MKS4B055606G_ _ _ _ _ _

MKS4B056806J_ _ _ _ _ _

MKS4B058206I_ _ _ _ _ _

100 µF

120 "

150 "

180 "

220 "

270 "

330 "

390 "

470 "

560 "

680 "

19
20
20
24
24
31
35
40
35
45
45

32
39.5
39.5
45.5
45.5
46
50
55
50
55
55

41.5
41.5
41.5
41.5
41.5
41.5
41.5
41.5
57
57
57

37.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
52.5
52.5
52.5

MKS4B061007F_ _ _ _ _ _

MKS4B061207G_ _ _ _ _ _

MKS4B061507G_ _ _ _ _ _

MKS4B061807H_ _ _ _ _ _

MKS4B062207H_ _ _ _ _ _

MKS4B062707I_ _ _ _ _ _

MKS4B063307J_ _ _ _ _ _

MKS4B063907K_ _ _ _ _ _

MKS4B064709F_ _ _ _ _ _

MKS4B065609H_ _ _ _ _ _

MKS4B066809H_ _ _ _ _ _

Capacitance

63VDC/40VAC*

W

H

L

PCM**

Part number

0.1 µF

0.15 "

0.22 "

0.33 "

0.47 "

0.68 "

2.5
4
2.5
4
3
4
4
4
4
4
5
4

7
9
7
9
8.5
9
9
9
9
9
10.5
9

10
13
10
13
10
13
10
13
10
13
10.3
13

7.5
10
7.5
10
7.5
10
7.5
10
7.5
10
7.5
10

MKS4C031002A_ _ _ _ _ _

MKS4C031003C_ _ _ _ _ _

MKS4C031502A_ _ _ _ _ _

MKS4C031503C_ _ _ _ _ _

MKS4C032202B_ _ _ _ _ _

MKS4C032203C_ _ _ _ _ _

MKS4C033302C_ _ _ _ _ _

MKS4C033303C_ _ _ _ _ _

MKS4C034702C_ _ _ _ _ _

MKS4C034703C_ _ _ _ _ _

MKS4C036802E_ _ _ _ _ _

MKS4C036803C_ _ _ _ _ _

1.0 µF

1.5 "

2.2 "

3.3 "

4.7 "

6.8 "

5
4
5.7
5
5
6
6
7
7
6
8
7

10.5
9
12.5
11
11
12.5
12
14
14
15
15
16.5

10.3
13
10.3
13
13
18
13
18
18
26.5
18
26.5

7.5
10
7.5
10
10
15
10
15
15
22.5
15
22.5

MKS4C041002E_ _ _ _ _ _

MKS4C041003C_ _ _ _ _ _

MKS4C041502F_ _ _ _ _ _

MKS4C041503F_ _ _ _ _ _

MKS4C042203F_ _ _ _ _ _

MKS4C042204C_ _ _ _ _ _

MKS4C043303G_ _ _ _ _ _

MKS4C043304D_ _ _ _ _ _

MKS4C044704D_ _ _ _ _ _

MKS4C044705B_ _ _ _ _ _

MKS4C046804F_ _ _ _ _ _

MKS4C046805D_ _ _ _ _ _

10 µF

15 "

18 "

22 "

27 "

33 "

39 "

47 "

56 "

68 "

82 "

8.5
9
11
9
9
11
11
13
15
15
13
17
15
17
15
17
17

18.5
19
21
19
19
21
21
24
26
26
24
29
26
34.5
26
34.5
29

26.5
31.5
26.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
41.5
31.5
41.5
31.5
41.5
31.5
41.5

22.5
27.5
22.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
37.5
27.5
37.6
27.5
37.5
27.5
37.5

MKS4C051005F_ _ _ _ _ _

MKS4C051006A_ _ _ _ _ _

MKS4C051505I_ _ _ _ _ _

MKS4C051506A_ _ _ _ _ _

MKS4C051806A_ _ _ _ _ _

MKS4C052206B_ _ _ _ _ _

MKS4C052706B_ _ _ _ _ _

MKS4C053306D_ _ _ _ _ _

MKS4C053906F_ _ _ _ _ _

MKS4C054706F_ _ _ _ _ _

MKS4C054707C_ _ _ _ _ _

MKS4C055606G_ _ _ _ _ _

MKS4C055607D_ _ _ _ _ _

MKS4C056806I_ _ _ _ _ _

MKS4C056807D_ _ _ _ _ _

MKS4C058206I_ _ _ _ _ _

MKS4C058207E_ _ _ _ _ _

100 µF

120 "

150 "

180 "

220 "

270 "

330 "

390 "

470 "

560 "

680 "

20
19
20
20
24
28
31
25
31
25
35
30
40
30
35
45
45

39.5
32
39.5
39.5
45.5
38
46
45
46
45
50
45
55
45
50
55
65

31.5
41.5
41.5
41.5
41.5
41.5
41.5
57
41.5
57
41.5
57
41.5
57
57
57
57

27.5
37.5
37.5
37.5
37.5
37.5
37.5
52.5
37.5
52.5
37.5
52.5
37.5
52.5
52.5
52.5
52.5

MKS4C061006J_ _ _ _ _ _

MKS4C061007F_ _ _ _ _ _

MKS4C061207G_ _ _ _ _ _

MKS4C061507G_ _ _ _ _ _

MKS4C061807H_ _ _ _ _ _

MKS4C061807L_ _ _ _ _ _

MKS4C062207I_ _ _ _ _ _

MKS4C062209D_ _ _ _ _ _

MKS4C062707I_ _ _ _ _ _

MKS4C062709D_ _ _ _ _ _

MKS4C063307J_ _ _ _ _ _

MKS4C063309E_ _ _ _ _ _

MKS4C063907K_ _ _ _ _ _

MKS4C063909E_ _ _ _ _ _

MKS4C064709F_ _ _ _ _ _

MKS4C065609H_ _ _ _ _ _

MKS4C066809J_ _ _ _ _ _

Capacitance

100VDC/63VAC*

W

H

L

PCM**

Part number

0.01 µF

0.015 "

0.022 "

0.033 "

0.047 "

0.068 "

2.5
4
2.5
4
2.5
4
2.5
4
2.5
4
2.5
4

7
9
7
9
7
9
7
9
7
9
7
9

10
13
10
13
10
13
10
13
10
13
10
13

7.5
10
7.5
10
7.5
10
7.5
10
7.5
10
7.5
10

MKS4D021002A_ _ _ _ _ _

MKS4D021003C_ _ _ _ _ _

MKS4D021502A_ _ _ _ _ _

MKS4D021503C_ _ _ _ _ _

MKS4D022202A_ _ _ _ _ _

MKS4D022203C_ _ _ _ _ _

MKS4D023302A_ _ _ _ _ _

MKS4D023303C_ _ _ _ _ _

MKS4D024702A_ _ _ _ _ _

MKS4D024703C_ _ _ _ _ _

MKS4D026802A_ _ _ _ _ _

MKS4D026803C_ _ _ _ _ _

0.1 µF

0.15 "

0.22 "

0.33 "

0.47 "

0.68 "

2.5
4
3
4
3
4
4
4
4.5
4
5
4

7
9
8.5
9
8.5
9
9
9
9.5
9
10.5
9

10
13
10
13
10
13
10
13
10.3
13
10.3
13

7.5
10
7.5
10
7.5
10
7.5
10
7.5
10
7.5
10

MKS4D031002A_ _ _ _ _ _

MKS4D031003C_ _ _ _ _ _

MKS4D031502B_ _ _ _ _ _

MKS4D031503C_ _ _ _ _ _

MKS4D032202B_ _ _ _ _ _

MKS4D032203C_ _ _ _ _ _

MKS4D033302C_ _ _ _ _ _

MKS4D033303C_ _ _ _ _ _

MKS4D034702D_ _ _ _ _ _

MKS4D034703C_ _ _ _ _ _

MKS4D036802E_ _ _ _ _ _

MKS4D036803C_ _ _ _ _ _

1.0 µF

1.5 "

2.2 "

3.3 "

4.7 "

6.8 "

.

5.7
5
6
7
8
6
9
7
10.5
9
10.5
11

12.5
11
12
14
15
15
16
16.5
19
19
19
21

10.3
13
13
18
18
26.5
18
26.5
26.5
31.5
26.5
31.5

7.5
10
10
15
15
22.5
15
22.5
22.5
27.5
22.5
27.5

MKS4D041002F_ _ _ _ _ _

MKS4D041003F_ _ _ _ _ _

MKS4D041503G_ _ _ _ _ _

MKS4D041504D_ _ _ _ _ _

MKS4D042204F_ _ _ _ _ _

MKS4D042205B_ _ _ _ _ _

MKS4D043304J_ _ _ _ _ _

MKS4D043305D_ _ _ _ _ _

MKS4D044705G_ _ _ _ _ _

MKS4D044706A_ _ _ _ _ _

MKS4D046805G_ _ _ _ _ _

MKS4D046806B_ _ _ _ _ _

10 µF

15 "

18 "

22 "

27 "

33 "

39 "

47 "

56 "

68 "

82 "

9
11
11
13
15
15
13
17
15
17
17
20
17
20
19
20

19
21
21
24
26
26
24
29
26
34.5
29
39.5
29
39.5
32
39.5

31.5
31.5
31.5
31.5
31.5
31.5
41.5
31.5
41.5
31.5
41.5
31.5
41.5
31.5
41.5
41.5

27.5
27.5
27.5
27.5
27.5
27.5
37.5
27.5
37.5
27.5
37.5
27.5
37.5
27.5
37.5
37.5

MKS4D051006A_ _ _ _ _ _

MKS4D051506B_ _ _ _ _ _

MKS4D051806B_ _ _ _ _ _

MKS4D052206D_ _ _ _ _ _

MKS4D052706F_ _ _ _ _ _

MKS4D053306F_ _ _ _ _ _

MKS4D053307C_ _ _ _ _ _

MKS4D053906G_ _ _ _ _ _

MKS4D053907D_ _ _ _ _ _

MKS4D054706I_ _ _ _ _ _

MKS4D054707E_ _ _ _ _ _

MKS4D055606J_ _ _ _ _ _

MKS4D055607E_ _ _ _ _ _

MKS4D056806J_ _ _ _ _ _

MKS4D056807F_ _ _ _ _ _

MKS4D058207G_ _ _ _ _ _

100 µF

120 "

150 "

180 "

220 "

270 "

330 "

390 "

470 "

20
24
31
31
25
35
30
40
35
45
45
45

39.5
45.5
46
46
45
50
45
55
50
55
55
65

41.5
41.5
41.5
41.5
57
41.5
57
41.5
57
57
57
57

37.5
37.5
37.5
37.5
52.5
37.5
52.5
37.5
52.5
52.5
52.5
52.5

MKS4D061007G_ _ _ _ _ _

MKS4D061207H_ _ _ _ _ _

MKS4D061507I_ _ _ _ _ _

MKS4D061807I_ _ _ _ _ _

MKS4D061809H_ _ _ _ _ _

MKS4D062207J_ _ _ _ _ _

MKS4D062209E_ _ _ _ _ _

MKS4D062707K_ _ _ _ _ _

MKS4D062709F_ _ _ _ _ _

MKS4D063309H_ _ _ _ _ _

MKS4D063909H_ _ _ _ _ _

MKS4D064709J_ _ _ _ _ _

Capacitance

250VDC/160VAC*

W

H

L

PCM**

Part number

0.01 µF

0.015 "

0.022 "

0.033 "

0.047 "

0.068 "

3
4
2.5
4
2.5
4
2.5
4
3
4
4
4

8.5
9
7
9
7
9
7
9
8.5
9
9
9

10
13
10
13
10
13
10
13
10
13
10
13

7.5
10
7.5
10
7.5
10
7.5
10
7.5
10
7.5
10

MKS4F021002B_ _ _ _ _ _

MKS4F021003C_ _ _ _ _ _

MKS4F021502B_ _ _ _ _ _

MKS4F021503C_ _ _ _ _ _

MKS4F022202B_ _ _ _ _ _

MKS4F022203C_ _ _ _ _ _

MKS4F023302B_ _ _ _ _ _

MKS4F023303C_ _ _ _ _ _

MKS4F024702B_ _ _ _ _ _

MKS4F024703C_ _ _ _ _ _

MKS4F026802C_ _ _ _ _ _

MKS4F026803C_ _ _ _ _ _

0.1 µF

0.15 "

0.22 "

0.33 "

.

0.47 "

.

0.68 "

4
4
5
4
5
5
5.7
5
6
6
7

9
9
10.5
9
10.5
11
12.5
11
12
12.5
14

10
13
10.3
13
10.3
13
10.3
13
13
18
18

7.5
10
7.5
10
7.5
10
7.5
10
10
15
15

MKS4F031002C_ _ _ _ _ _

MKS4F031003C_ _ _ _ _ _

MKS4F031502E_ _ _ _ _ _

MKS4F031503C_ _ _ _ _ _

MKS4F032202E_ _ _ _ _ _

MKS4F032203F_ _ _ _ _ _

MKS4F033302F_ _ _ _ _ _

MKS4F033303F_ _ _ _ _ _

MKS4F034703G_ _ _ _ _ _

MKS4F034704C_ _ _ _ _ _

MKS4F036804D_ _ _ _ _ _

1.0 µF

.

1.5 "

2.2 "

3.3 "

4.7 "

6.8 "

8
6
9
7
10.5
9
11
11
11
13

15
15
16
16.5
19
19
21
21
21
24

18
26.5
18
26.5
26.5
31.5
26.5
31.5
31.5
31.5

15
22.5
15
22.5
22.5
27.5
22.5
27.5
27.5
27.5

MKS4F041004F_ _ _ _ _ _

MKS4F041005B_ _ _ _ _ _

MKS4F041504J_ _ _ _ _ _

MKS4F041505D_ _ _ _ _ _

MKS4F042205G_ _ _ _ _ _

MKS4F042206A_ _ _ _ _ _

MKS4F043305I_ _ _ _ _ _

MKS4F043306B_ _ _ _ _ _

MKS4F044706B_ _ _ _ _ _

MKS4F046806D_ _ _ _ _ _

10 µF

15 "

18 "

22 "

27 "

33 "

39 "

47 "

56 "

68 "

82 "

17
15
17
17
20
19
20
20
24
24
28
35
25
35
30
40
35

29
26
34.5
29
39.5
32
39.5
39.5
45.5
45.5
38
50
45
50
45
55
50

31.5
41.5
31.5
41.5
31.5
41.5
41.5
41.5
41.5
41.5
41.5
41.5
57
41.5
57
41.5
57

27.5
37.5
27.5
37.5
27.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
52.5
37.5
52.5
37.5
52.5

MKS4F051006G_ _ _ _ _ _

MKS4F051007D_ _ _ _ _ _

MKS4F051506I_ _ _ _ _ _

MKS4F051507E_ _ _ _ _ _

MKS4F051806J_ _ _ _ _ _

MKS4F051807F_ _ _ _ _ _

MKS4F052207G_ _ _ _ _ _

MKS4F052707G_ _ _ _ _ _

MKS4F053307H_ _ _ _ _ _

MKS4F053907H_ _ _ _ _ _

MKS4F054707L_ _ _ _ _ _

MKS4F055607J_ _ _ _ _ _

MKS4F055609D_ _ _ _ _ _

MKS4F056807J_ _ _ _ _ _

MKS4F056809E_ _ _ _ _ _

MKS4F058207K_ _ _ _ _ _

MKS4F058209F_ _ _ _ _ _

100 µF

120 "

150 "

45

55

65

57

52.5

MKS4F061009H_ _ _ _ _ _

MKS4F061209H_ _ _ _ _ _

MKS4F061509J_ _ _ _ _ _

Capacitance

400VDC/200VAC*

W

H

L

PCM**

Part number

0.01µF

.

0.015 "

.

0.022 "

.

0.033 "

.

0.047 "

.

0.068 "

.

3
4
3
4
4
4
4
4
5
4
5
4

8.5
9
8.5
9
9
9
9
9
10.5
9
10.5
9

10
13
10
13
10
13
10
13
10.3
13
10.3
13

7.5
10
7.5
10
7.5
10
7.5
10
7.5
10
7.5
10

MKS4G021002B_ _ _ _ _ _

MKS4G021003C_ _ _ _ _ _

MKS4G021502B_ _ _ _ _ _

MKS4G021503C_ _ _ _ _ _

MKS4G022202C_ _ _ _ _ _

MKS4G022203C_ _ _ _ _ _

MKS4G023302C_ _ _ _ _ _

MKS4G023303C_ _ _ _ _ _

MKS4G024702E_ _ _ _ _ _

MKS4G024703C_ _ _ _ _ _

MKS4G026802E_ _ _ _ _ _

MKS4G026803C_ _ _ _ _ _

0.1 µF

.

0.15 "

.

0.22 "

.

0.33 "

0.47 "

.

0.68 "

5
5
5.7
6
6
6
8
8
6
7

10.5
11
12.5
12
12
12.5
15
15
15
16.5

10.3
13
10.3
13
13
18
18
18
26.5
26.5

7.5
10
7.5
10
10
15
15
15
22.5
22.5

MKS4G031002E_ _ _ _ _ _

MKS4G031003F_ _ _ _ _ _

MKS4G031502F_ _ _ _ _ _

MKS4G031503G_ _ _ _ _ _

MKS4G032203G_ _ _ _ _ _

MKS4G032204C_ _ _ _ _ _

MKS4G033304F_ _ _ _ _ _

MKS4G034704F_ _ _ _ _ _

MKS4G034705B_ _ _ _ _ _

MKS4G036805D_ _ _ _ _ _

1.0 µF

.

1.5 "

.

2.2 "

3.3 "

4.7 "

6.8 "

.

10.5
11
11
11
11
13
17
17
15

19
21
21
21
21
24
29
34.5
26

26.5
31.5
26.5
31.5
31.5
31.5
31.5
31.5
41.5

22.5
27.5
22.5
27.5
27.5
27.5
27.5
27.5
37.5

MKS4G041005G_ _ _ _ _ _

MKS4G041006B_ _ _ _ _ _

MKS4G041505I_ _ _ _ _ _

MKS4G041506B_ _ _ _ _ _

MKS4G042206B_ _ _ _ _ _

MKS4G043306D_ _ _ _ _ _

MKS4G044706G_ _ _ _ _ _

MKS4G046806I_ _ _ _ _ _

MKS4G046807D_ _ _ _ _ _

10 µF

15 "

18 "

22 "

27 "

33 "

39 "

47 "

56 "

68 "

19
20
31
31
35
35
35
35
45
45

32
39.5
46
46
50
50
50
50
65
65

41.5
41.5
41.5
41.5
41.5
41.5
57
57
57
57

37.5
37.5
37.5
37.5
37.5
37.5
52.5
52.5
52.5
52.5

MKS4G051007F_ _ _ _ _ _

MKS4G051507G_ _ _ _ _ _

MKS4G051807I_ _ _ _ _ _

MKS4G052207I_ _ _ _ _ _

MKS4G052707J_ _ _ _ _ _

MKS4G053307J_ _ _ _ _ _

MKS4G053909F_ _ _ _ _ _

MKS4G054709F_ _ _ _ _ _

MKS4G055609J_ _ _ _ _ _

MKS4G056809J_ _ _ _ _ _

Capacitance

630VDC/400VAC*

W

H

L

PCM**

Part number

0.01 µF

.

0.015 "

.

0.022 "

.

0.033 "

.

0.047 "

.

0.068 "

.

3
4
4
4
4.5
4
5
5
5.7
6
6
5

8.5
9
9
9
9.5
9
10.5
11
12.5
12
12
11

10
13
10
13
10.3
13
10.3
13
10.3
13
13
18

7.5*
10
7.5*
10
7.5*
10
7.5*
10
7.5*
10
10
15

MKS4J021002B_ _ _ _ _ _

MKS4J021003C_ _ _ _ _ _

MKS4J021502C_ _ _ _ _ _

MKS4J021503C_ _ _ _ _ _

MKS4J022202D_ _ _ _ _ _

MKS4J022203C_ _ _ _ _ _

MKS4J023302E_ _ _ _ _ _

MKS4J023303F_ _ _ _ _ _

MKS4J024702F_ _ _ _ _ _

MKS4J024703G_ _ _ _ _ _

MKS4J026803G_ _ _ _ _ _

MKS4J026804B_ _ _ _ _ _

0.1 µF

.

0.15 "

.

0.22 "

.

0.33 "

.

0.47 "

.

0.68 "

.

6
6
7
6
8
6
7
9
10.5
9
11
11

12.5
15
14
15
15
15
16.5
19
19
19
21
21

18
26.5
18
26.5
18
26.5
26.5
31.5
26.5
31.5
26.5
31.5

15
22.5
15
22.5
15
22.5
22.5
27.5
22.5
27.5
22.5
27.5

MKS4J031004C_ _ _ _ _ _

MKS4J031005B_ _ _ _ _ _

MKS4J031504D_ _ _ _ _ _

MKS4J031505B_ _ _ _ _ _

MKS4J032204F_ _ _ _ _ _

MKS4J032205B_ _ _ _ _ _

MKS4J033305D_ _ _ _ _ _

MKS4J033306A_ _ _ _ _ _

MKS4J034705G_ _ _ _ _ _

MKS4J034706A_ _ _ _ _ _

MKS4J036805I_ _ _ _ _ _

MKS4J036806B_ _ _ _ _ _

1.0 µF

1.5 "

2.2 "

.

3.3 "

.

4.7 "

6.8 "

11
15
17
15
20
19
20
24

21
26
34.5
26
39.5
32
39.5
45.5

31.5
31.5
31.5
41.5
31.5
41.5
41.5
41.5

27.5
27.5
27.5
37.5
27.5
37.5
37.5
37.5

MKS4J041006B_ _ _ _ _ _

MKS4J041506F_ _ _ _ _ _

MKS4J042206I_ _ _ _ _ _

MKS4J042207D_ _ _ _ _ _

MKS4J043306I_ _ _ _ _ _

MKS4J043307F_ _ _ _ _ _

MKS4J044707G_ _ _ _ _ _

MKS4J046807H_ _ _ _ _ _

10 µF

15 "

18 "

22 "

35

40

45

50

55

41.5

57

37.5

52.5

MKS4J051007J_ _ _ _ _ _

MKS4J051507K_ _ _ _ _ _

MKS4J051809H_ _ _ _ _ _

MKS4J052209H_ _ _ _ _ _

Capacitance

1000VDC/400VAC*

W

H

L

PCM**

Part number

1000 pF

.

1500 "

.

2200 "

.

3300 "

.

4700 "

.

6800 "

.

3
4
3
4
3
4
4
4
4
4
4.5
4

8.5
9
8.5
9
8.5
9
9
9
9
9
9.5
9

10
13
10
13
10
13
10
13
10
13
10.3
13

7.5
10
7.5
10
7.5
10
7.5
10
7.5
10
7.5
10

MKS4O111002B_ _ _ _ _ _

MKS4O111003C_ _ _ _ _ _

MKS4O111502B_ _ _ _ _ _

MKS4O111503C_ _ _ _ _ _

MKS4O112202B_ _ _ _ _ _

MKS4O112203C_ _ _ _ _ _

MKS4O113302B_ _ _ _ _ _

MKS4O113303C_ _ _ _ _ _

MKS4O114702B_ _ _ _ _ _

MKS4O114703C_ _ _ _ _ _

MKS4O116802D_ _ _ _ _ _

MKS4O116803C_ _ _ _ _ _

0.01 µF

.

0.015 "

.

0.022 "

0.033 "

.

0.047 "

.

0.068 "

.

5
5
5.7
6
5
6
6
7
6
8
6

10.5
11
12.5
12
11
12.5
15
14
15
15
15

10.3
13
10.3
13
18
18
26.5
18
26.5
18
26.5

7.5
10
7.5
10
15
15
22.5
15
22.5
15
22.5

MKS4O121002E_ _ _ _ _ _

MKS4O121003F_ _ _ _ _ _

MKS4O121502F_ _ _ _ _ _

MKS4O121503G_ _ _ _ _ _

MKS4O122204B_ _ _ _ _ _

MKS4O123304C_ _ _ _ _ _

MKS4O123305B_ _ _ _ _ _

MKS4O124704D_ _ _ _ _ _

MKS4O124705B_ _ _ _ _ _

MKS4O126804F_ _ _ _ _ _

MKS4O126805B_ _ _ _ _ _

0.1 µF

.

0.15 "

0.22 "

0.33 "

.

0.47 "

0.68 "

9
7
8.5
10.5
11
11
13
15

16
16.5
18.5
19
21
21
24
26

18
26.5
26.5
26.5
26.5
31.5
31.5
31.5

15
22.5
22.5
22.5
22.5
27.5
27.5
27.5

MKS4O131004J_ _ _ _ _ _

MKS4O131005D_ _ _ _ _ _

MKS4O131505F_ _ _ _ _ _

MKS4O132205G_ _ _ _ _ _

MKS4O133305I_ _ _ _ _ _

MKS4O133306B_ _ _ _ _ _

MKS4O134706D_ _ _ _ _ _

MKS4O136806F_ _ _ _ _ _

1.0 µF

.

1.5 "

2.2 "

3.3 "

4.7 "

6.8 "

17
17
19
20
24
35
40
35

29
29
32
39.5
45.5
50
55
50

31.5
41.5
41.5
41.5
41.5
41.5
41.5
57

27.5
37.5
37.5
37.5
37.5
37.5
37.5
52.5

MKS4O141006G_ _ _ _ _ _

MKS4O141007E_ _ _ _ _ _

MKS4O141507F_ _ _ _ _ _

MKS4O142207G_ _ _ _ _ _

MKS4O143307H_ _ _ _ _ _

MKS4O144707J_ _ _ _ _ _

MKS4O146807K_ _ _ _ _ _

MKS4O146809F_ _ _ _ _ _

10 µF

45

55

57

52.5

MKS4O151009H_ _ _ _ _ _

Capacitance

1500VDC/400VAC*

W

H

L

PCM**

Part number

1000 pF

1500 "

2200 "

3300 "

4700 "

.

6800 "

.

4
4
4
4
4
5
5
5

9
9
9
9
9
11
11
11

13
13
13
13
13
18
13
18

10
10
10
10
10
15
10
15

MKS4S011003C_ _ _ _ _ _

MKS4S011503C_ _ _ _ _ _

MKS4S012203C_ _ _ _ _ _

MKS4S013303C_ _ _ _ _ _

MKS4S014703C_ _ _ _ _ _

MKS4S014704B_ _ _ _ _ _

MKS4S016803F_ _ _ _ _ _

MKS4S016804B_ _ _ _ _ _

0.01 µF

.

0.015 "

0.022 "

.

0.033 "

.

0.047 "

0.068 "

6
5
6
7
6
8
6
7
8.5

12
11
12.5
14
15
15
15
16.5
18.5

13
18
18
18
26.5
18
26.5
26.5
26.5

10
15
15
15
22.5
15
22.5
22.5
22.5

MKS4S021003G_ _ _ _ _ _

MKS4S021004B_ _ _ _ _ _

MKS4S021504C_ _ _ _ _ _

MKS4S022204D_ _ _ _ _ _

MKS4S022205B_ _ _ _ _ _

MKS4S023304F_ _ _ _ _ _

MKS4S023305B_ _ _ _ _ _

MKS4S024705D_ _ _ _ _ _

MKS4S026805F_ _ _ _ _ _

0.1 µF

.

0.15 "

0.22 "

0.33 "

.

0.47 "

.

0.68 "

10.5
9
11
13
17
17
20
17
20

19
19
21
24
34.5
29
39.5
29
39.5

26.5
31.5
31.5
31.5
31.5
41.5
31.5
41.5
41.5

22.5
27.5
27.5
27.5
27.5
37.5
27.5
37.5
37.5

MKS4S031005G_ _ _ _ _ _

MKS4S031006A_ _ _ _ _ _

MKS4S031506B_ _ _ _ _ _

MKS4S032206D_ _ _ _ _ _

MKS4S033306I_ _ _ _ _ _

MKS4S033307E_ _ _ _ _ _

MKS4S034706J_ _ _ _ _ _

MKS4S034707E_ _ _ _ _ _

MKS4S036807G_ _ _ _ _ _

1.0 µF

1.5 "

2.2 "

.

3.3 "

4.7 "

24

31

35

45

45.5

46

50

55

65

41.5

57

37.5

52.5

MKS4S041007H_ _ _ _ _ _

MKS4S041507I_ _ _ _ _ _

MKS4S042207J_ _ _ _ _ _

MKS4S042209F_ _ _ _ _ _

MKS4S043309H_ _ _ _ _ _

MKS4S044709J_ _ _ _ _ _

Capacitance

2000VDC/400VAC*

W

H

L

PCM**

Part number

1000 pF

1500 "

2200 "

3300 "

.

4700 "

6800 "

4

5

6

5

6

9

11

12

11

12.5

13

18

10

15

MKS4U011003C_ _ _ _ _ _

MKS4U011503C_ _ _ _ _ _

MKS4U012203F_ _ _ _ _ _

MKS4U013303G_ _ _ _ _ _

MKS4U013304B_ _ _ _ _ _

MKS4U014704B_ _ _ _ _ _

MKS4U016804C_ _ _ _ _ _

0.01 µF

.

0.015 "

0.022 "

0.033 "

0.047 "

.

0.068 "

7
6
6
7
10.5
11
11
11

14
15
15
16.5
19
21
21
21

18
26.5
26.5
26.5
26.5
26.5
31.5
31.5

15
22.5
22.5
22.5
22.5
22.5
27.5
27.5

MKS4U021004D_ _ _ _ _ _

MKS4U021005B_ _ _ _ _ _

MKS4U021505B_ _ _ _ _ _

MKS4U022205D_ _ _ _ _ _

MKS4U023305G_ _ _ _ _ _

MKS4U024705I_ _ _ _ _ _

MKS4U024706B_ _ _ _ _ _

MKS4U026806B_ _ _ _ _ _

0.1 µF

0.15 "

.

0.22 "

0.33 "

0.47 "

0.68 "

13

17

13

17

20

24

31

24

29

24

29

39.5

45.5

46

31.5

41.5

27.5

37.5

MKS4U031006D_ _ _ _ _ _

MKS4U031506G_ _ _ _ _ _

MKS4U031507C_ _ _ _ _ _

MKS4U032207E_ _ _ _ _ _

MKS4U033307G_ _ _ _ _ _

MKS4U034707H_ _ _ _ _ _

MKS4U036807I_ _ _ _ _ _

1.0 µF

.

1.5 "

2.2 "

3.3 "

40

25

30

45

55

45

55

65

41.5

57

37.5

52.5

MKS4U041007K_ _ _ _ _ _

MKS4U041009D_ _ _ _ _ _

MKS4U041509E_ _ _ _ _ _

MKS4U042209H_ _ _ _ _ _

MKS4U043309J_ _ _ _ _ _

* AC voltage: f = 50 Hz; 1.4 x U_rms + U_DC < U_r

New values and box sizes. The box sizes according to main catalogue 2019 are still available on request.
** PCM = Printed circuit module = pin spacing.
* Admissible AC voltage 250VAC max.
Dims. in mm.

2-pin version

4-pin version

Part number completion

Version Code	2-pin = 00 4-pin = D4
Tolerance:	20 % = M 10 % = K 5 % = J
Packing:	bulk = S
Pin length:	6-2 = SD

Permissible AC voltage in relation to frequency at 10°C internal temperature rise (general guide)

AC voltage WIMA MKS 4 capacitors 100 VDC

AC voltage WIMA MKS 4 capacitors 250 VDC

AC voltage WIMA MKS 4 capacitors 400 VDC

AC voltage WIMA MKS 4 capacitors 630 VDC

AC voltage WIMA MKS 4 capacitors 1000 VDC

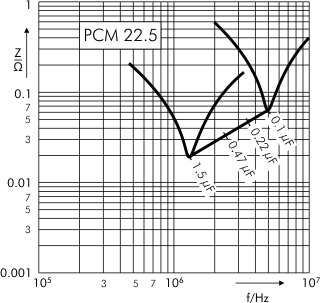

Impedance change with frequency (general guide)

Rights reserved to amend design data without prior notification.

d	PCM	W
0.5 0.6 0.6 0.8 1.0	7.5 7.5 10 15-27.5 37.5	< 3 > 4

W	PCM	b	d	c
17 19 20 24 28 31 35 40 25 30 35 45	37.5 37.5 37.5 37.5 37.5 27.5 37.5 37.5 52,5 52,5 52.5 52.5	10 10 12.5 12.5 12.5 20 20 20 20 20 20 20	1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.2 1.2 1.2 1.2	0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.8 0.8 0,8 0.8

Search our site

Parametric search

Snubber-Finder

Film Capacitors – Made in Germany

Metallized capacitors

WIMA MKS 4 Metallized Polyester (PET) Capacitors.

Special Features

Typical Applications

Construction

Electrical Data

Mechanical Tests

Packing

General Data

2-pin version

4-pin version

Part number completion

Permissible AC voltage in relation to frequency at 10°C internal temperature rise (general guide)

Impedance change with frequency (general guide)
